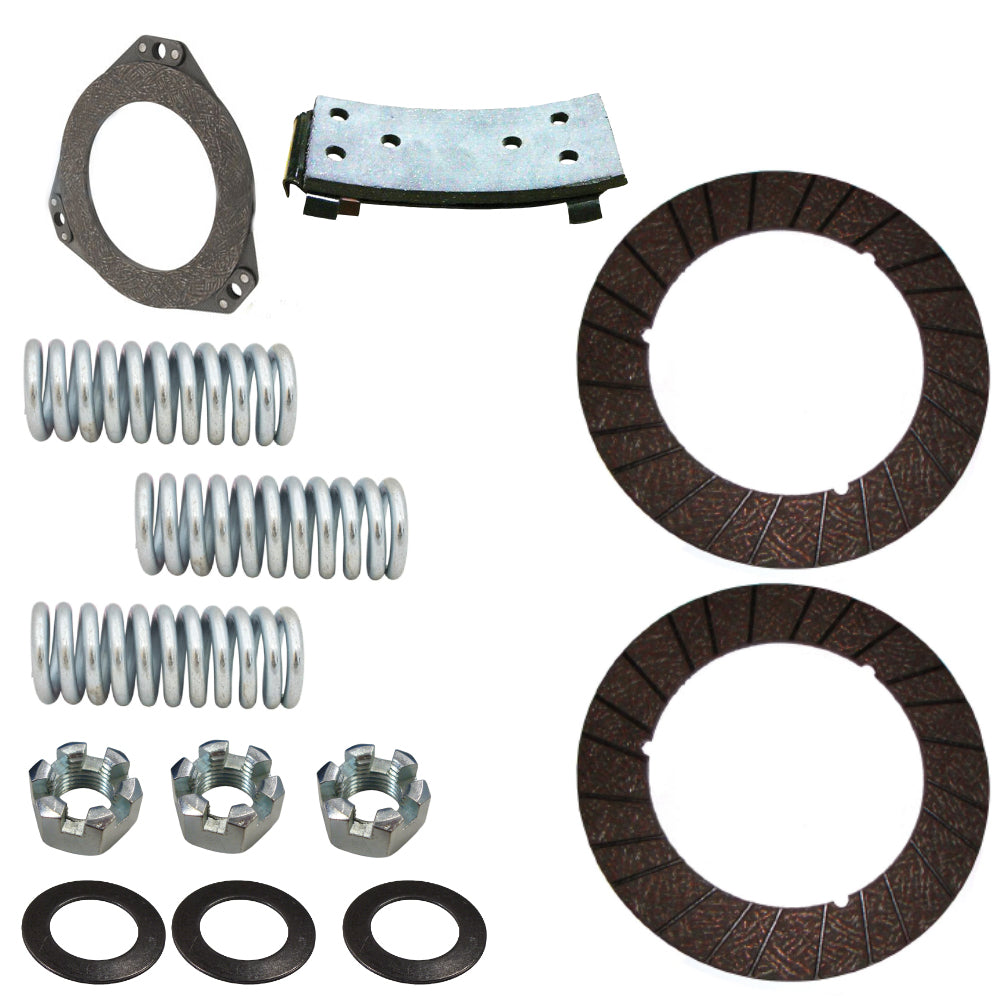

Aftermarket Clutch Rebuild Kit

Tech Info:
 -(1) Facing Clutch Pulley
 -Sold individually
 -10" disc outside diameter
 -0.393" thick
 -Replaces Part Numbers: AA5082R, AA6129
 -
 -(1) Brake Pad Pulley
 -Non-asbestos lining with countersunk brass rivets
 -Replaces Part Numbers: AB4748R, AF4748R, RE29790
 -
 -(2) Facing Clutch Disc
 -10" outside diameter (OD)
 -6-3/4" inside diameter (ID)
 -0.150" thick
 -The side with the grooves faces the driving disc
 -1-5/8" lining width
 -Replaces Part Numbers: R90215, C614R
 -
 -(3) Clutch Disc Adjusting Spring
 -1.915" long
 -0.740" outside diameter
 -0.500" inside diameter
 -0.120" wire thickness
 -The clutch disc adjusting spring mounts to the outer cast iron adjusting disc
 -3 springs used per tractor
 -Replaces Part Numbers: A352R
 -
 -(3) Clutch Adjusting Nut
 -1/2" - 20 NF
 -Grade 5
 -Zinc
 -Slotted hex nut, 1/2"
 -3 used per tractor;
 -Replaces Part Numbers: B3279R, AA4967R, A335R, 14H994
 -
 -(3) Clutch Pressure Plate Spring (Fits Belleville) Washer
 -0.572" inside diameter
 -0.937" outside diameter
 -0.035" thick
 -Spring steel
 -Torque initially to 15 FT pounds, then adjust as needed
 -Use to smooth out the hand clutch engagement
 -3 used per tractor
 -Replaces part Numbers: JDS1626

Fits John Deere:
 Replaces Part Number(s): B3279R, AA4967R, A335R, 14H994
