153535 Spindle Assembly, Blade & Pulley Kit Fits Ariens 42" 46" 48" 54" decks
153535 Spindle Assembly, Blade & Pulley Kit Fits Ariens 42" 46" 48" 54" decks
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER
Aftermarket Spindle Assembly, Blade & Pulley KitTech Info:

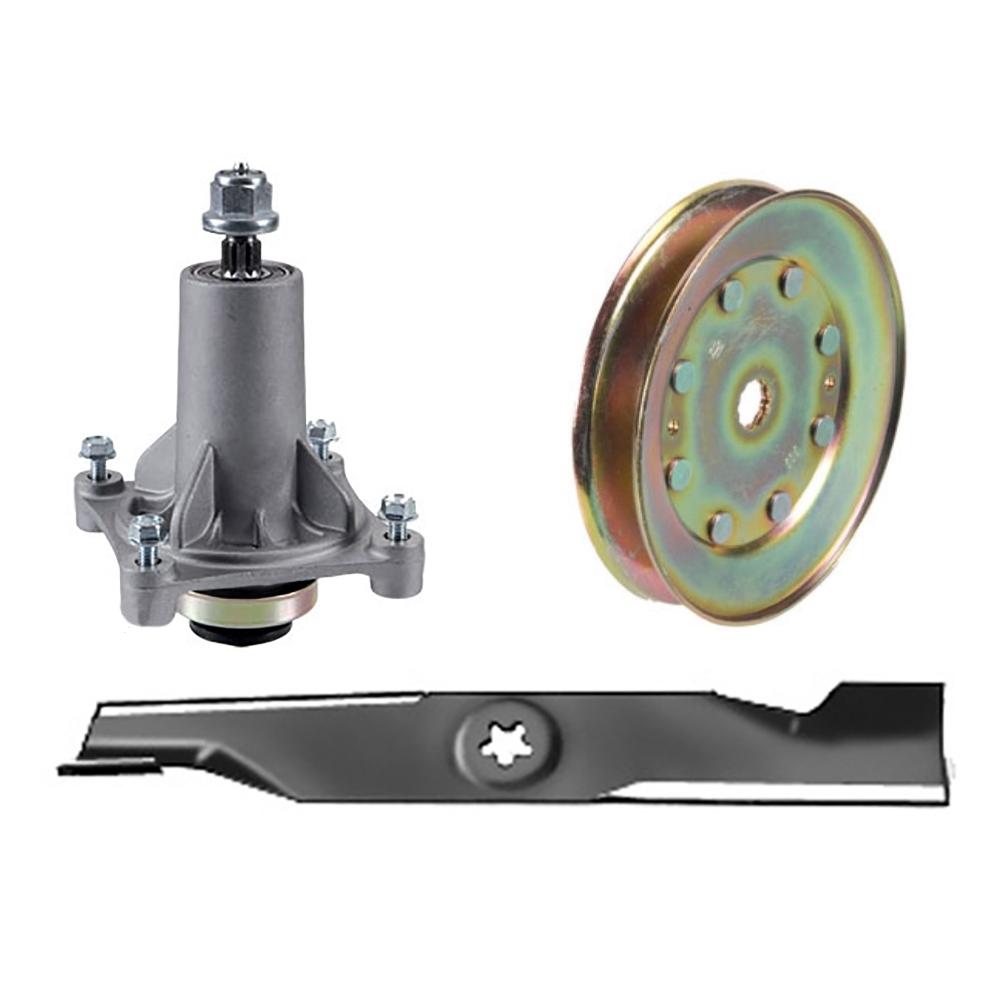

-Kit Contains:
-(1) Spindle Assembly
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-
-Includes:
-Pulley Locknut,
-Blade Bolt/Washer,
-Spacer,
-4 Mounting Bolts
-
-Replaces Part Number(s):
-187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 21546238, 21546299, 21549012, 532192870, 587819701
-
-(1) Drive Pulley
-Outer Diameter: 5-1/6"
-Inner Diameter: 9/16"
-Steel
-
-Replaces Part Number(s):
-177865, 129861, 153535, 173436, 532173436, 532129861, 532153535, 532173436, 539112171, 153535, 21546127, 532173436
-
-(1) Mower Blade
-Length: 16-5/8"
-Width: 2-1/2"
-Center Hole: 5 Point Star
-Thickness: .204"
-
-Replaces Part Number(s):
-177865, 129861, 153535, 173436, 532173436, 532173920, 532180054, 21547939
Fits Ariens:
Lawn/Garden Tractor Models: 42", 46", 48", 54" decks
Replaces Part Number(s): 21546238, 21546299, 21549012, 532192870, 587819701, 153535, 21546127, 532173436, 21547939
-Kit Contains:
-(1) Spindle Assembly
-4-Bolt Long Housing
-5-Point Star Blade Mount
-Threaded Mounting Holes for Easy Installation
-Shaft is Splined for Spline-Type Pulleys
-
-Includes:
-Pulley Locknut,
-Blade Bolt/Washer,
-Spacer,
-4 Mounting Bolts
-
-Replaces Part Number(s):
-187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 21546238, 21546299, 21549012, 532192870, 587819701
-
-(1) Drive Pulley
-Outer Diameter: 5-1/6"
-Inner Diameter: 9/16"
-Steel
-
-Replaces Part Number(s):
-177865, 129861, 153535, 173436, 532173436, 532129861, 532153535, 532173436, 539112171, 153535, 21546127, 532173436
-
-(1) Mower Blade
-Length: 16-5/8"
-Width: 2-1/2"
-Center Hole: 5 Point Star
-Thickness: .204"
-
-Replaces Part Number(s):
-177865, 129861, 153535, 173436, 532173436, 532173920, 532180054, 21547939
Fits Ariens:
Lawn/Garden Tractor Models: 42", 46", 48", 54" decks
Replaces Part Number(s): 21546238, 21546299, 21549012, 532192870, 587819701, 153535, 21546127, 532173436, 21547939
Models This Part Fits:
2454, 24V54Additional Information:
Kit Contains: (1) Spindle Assembly 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number(s): 187292, 192870, 532187281, 532187292, 532192870, 539112057, 587125401, 587253301, 587819701, 587820301, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 21546238, 21546299, 21549012, 532192870, 587819701 (1) Drive Pulley Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Number(s): 177865, 129861, 153535, 173436, 532173436, 532129861, 532153535, 532173436, 539112171, 153535, 21546127, 532173436 (1) Mower Blade Length: 16-5/8" Width: 2-1/2" Center Hole: 5 Point Star Thickness: .204" Replaces Part Number(s): 177865, 129861, 153535, 173436, 532173436, 532173920, 532180054, 21547939Reference Numbers:
XT1066SD101TX, XT1066SD101TX-AMakes This Part Fits:
