SPM214685078 Spindle Assembly, Blade & Belt Kit Fits CRAFTSMAN

SPM214685078 Spindle Assembly, Blade & Belt Kit Fits CRAFTSMAN

AIC Replacement Parts


**TO VIEW PRICE**

LOGIN or REGISTER


Aftermarket Spindle Assembly, Blade & Belt Kit

Tech Info:

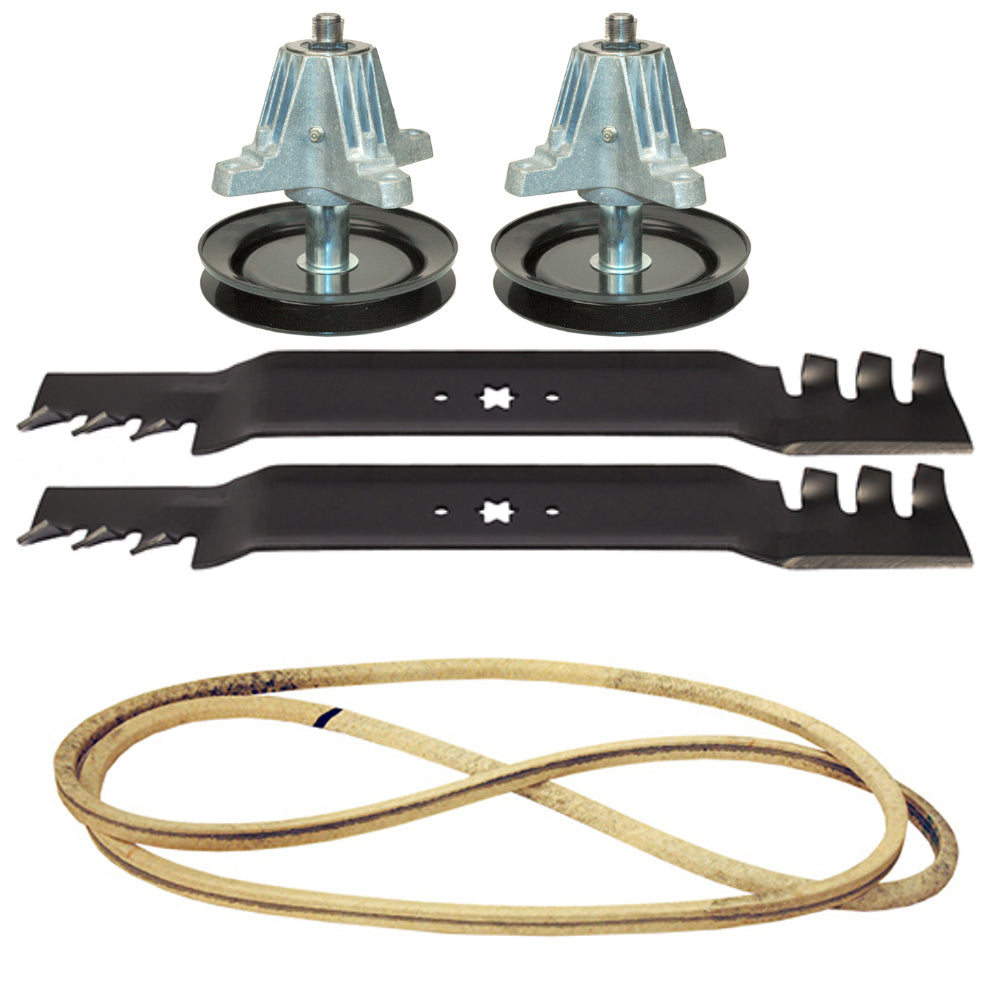

 -Kit Includes:
 -(2) Spindles, (2) Mulching Blades, (1) Made With Aramid Belt
 -
 -(1) Deck Drive Belt
 -Belt Type: Covered
 -Width: 1/2"
 -Length: 96-1/2"
 -Replaces Part Numbers:
 -954-04060B, 754-04060B, 954 /754- 04060A, 954/ 754-04060
 -
 -(2) Spindles
 -OD of Pulley: 6"
 -Specially designed: to replace 6 pt. star spindle shaft
 -Pulley included
 -No threads in housing, use Thread Cutting Bolts
 -Replaces Part Numbers:
 -618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950,
 -
 -(2) Mulch Blades
 -Length: 21-3/16"
 -Width: 3"
 -Thickness: 0.150"
 -Center Hole: 6 Point Star
 -Replaces Part Numbers:
 -742-0616, 942-0616, 942-0616A, SPM214685078, 742-04126, 742-0616, 942-04126, 942-0616, 942-0616A, 742-0616, 942-0616, 742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, Fits Toro: 112-0315, 98022, 742-0616, 942-0616


Fits CRAFTSMAN:
 Replaces Part Number(s): SPM214685078

Models This Part Fits:

Additional Information:

Kit Includes: (2) Spindles, (2) Mulching Blades, (1) Made With Aramid Belt (1) Deck Drive Belt Belt Type: Covered Width: 1/2" Length: 96-1/2" Replaces Part Numbers: 954-04060B, 754-04060B, 954 /754- 04060A, 954/ 754-04060 (2) Spindles OD of Pulley: 6" Specially designed: to replace 6 pt. star spindle shaft Pulley included No threads in housing, use Thread Cutting Bolts Replaces Part Numbers: 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950, (2) Mulch Blades Length: 21-3/16" Width: 3" Thickness: 0.150" Center Hole: 6 Point Star Replaces Part Numbers: 742-0616, 942-0616, 942-0616A, SPM214685078, 742-04126, 742-0616, 942-04126, 942-0616, 942-0616A, 742-0616, 942-0616, 742-04126, 742-0616, 742-0616A, 742-616A, 942-04126, 942-0616, 942-0616A, 942-616, Fits Toro: 112-0315, 98022, 742-0616, 942-0616

Reference Numbers:

918-04822A, 918-04822A-A, 942-04308, 942-04308-A, 954-04060, 954-04060-A, 956-04129, 956-04129-A

Makes This Part Fits:

Shop Mtd Wholesale Parts
Shop Universal Wholesale Parts

Product Category:

Lawn & Garden Replacement Parts

Product Group:

Product Sub Group:
