Tail Wheel Assembly Fits Rotary Cutter 1 1/4" Shaft Post Diameter 1-1/4"
Tail Wheel Assembly Fits Rotary Cutter 1 1/4" Shaft Post Diameter 1-1/4"
AIC Replacement Parts
**TO VIEW PRICE**
LOGIN or REGISTER

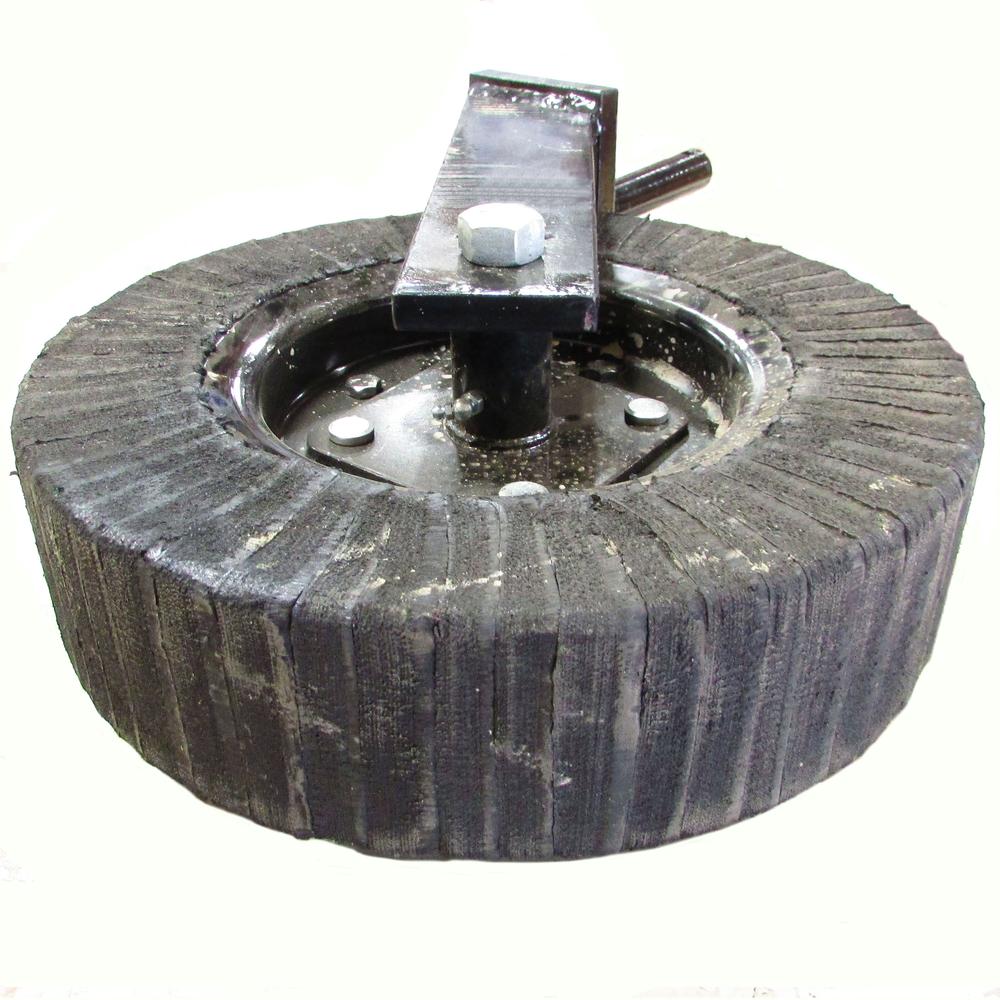

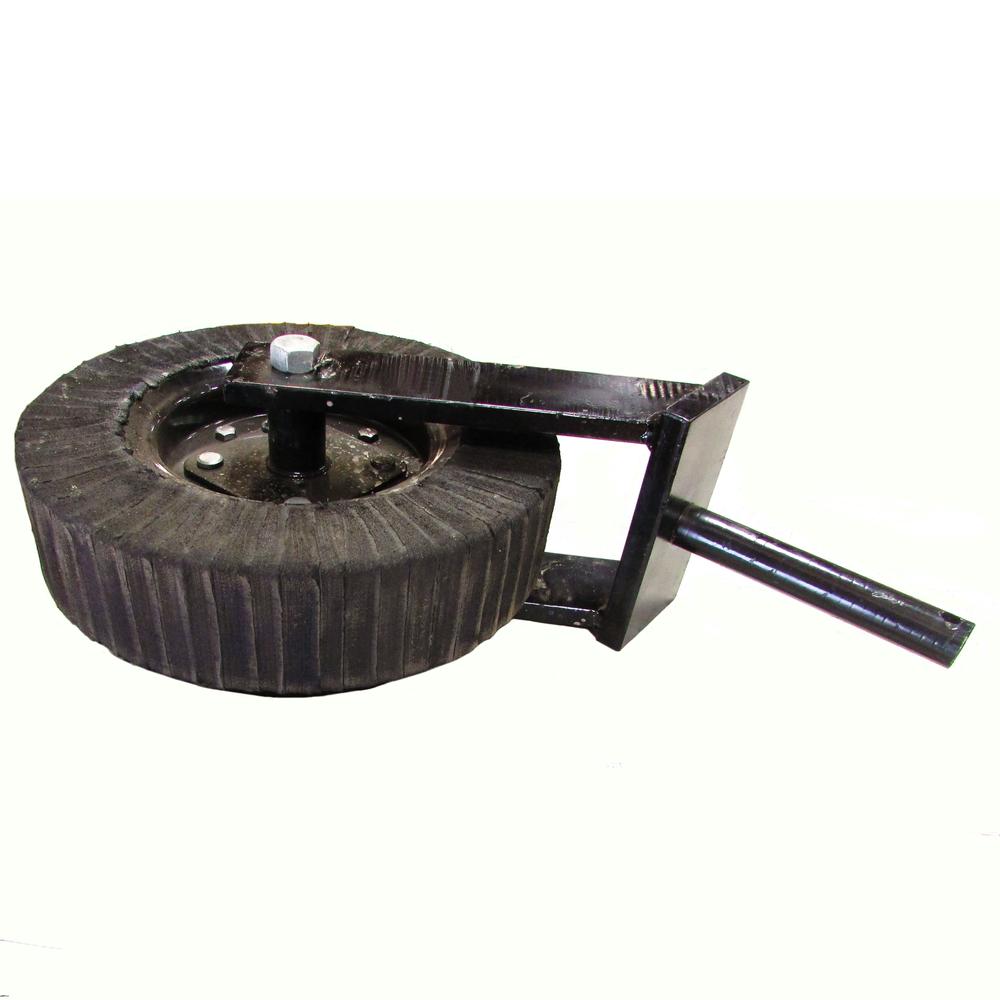

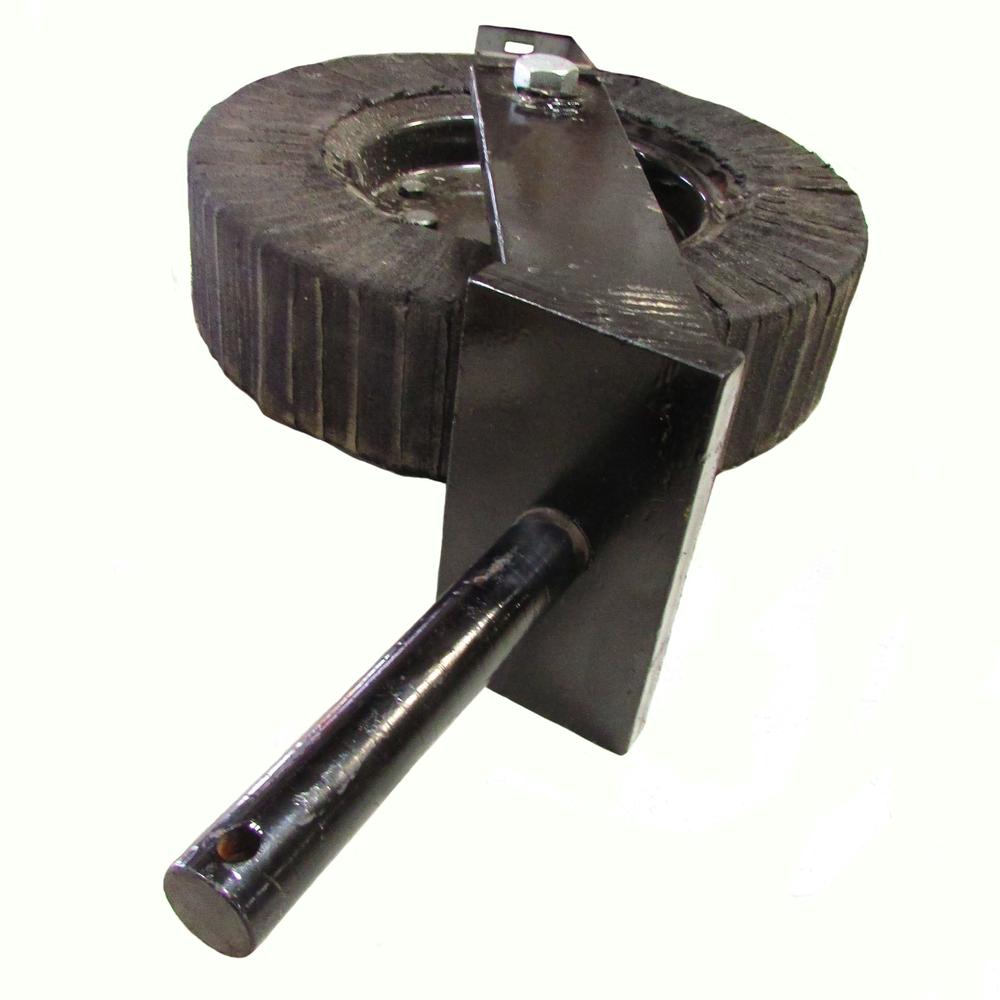

New Aftermarket Replacement Laminated Tail Wheel Assembly with Fork
Tech Info:
Post Diameter: 1-1/4"
Post Length: 5-1/4"
Fork Height (Inside): 9-5/8"
Fork Width (Inside): 5-1/2"
Tire Height: 15"
Axle Hole Diameter: 3/4"
The hub is the 4 bolt fabricated hub with replaceable bushings.
The hubs are greaseable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole.
Fits Howske, Fits Kodiak and Many Other Brands!
Tech Info:
Post Diameter: 1-1/4"
Post Length: 5-1/4"
Fork Height (Inside): 9-5/8"
Fork Width (Inside): 5-1/2"
Tire Height: 15"
Axle Hole Diameter: 3/4"
The hub is the 4 bolt fabricated hub with replaceable bushings.
The hubs are greaseable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole.
Fits Howske, Fits Kodiak and Many Other Brands!
Models This Part Fits:
Additional Information:
Post Diameter: 1-1/4" Post Length: 5-1/4" 9-5/8" Tall Inside the Fork Fork Width (Inside): 5-1/2" Tire Height: 15" 3/4" Axle Hole Diameter The hub is the 4 bolt fabricated hub with replaceable bushings. The hubs are greasable and the bolt pattern is 3-9/16" going clockwise from bolt to bolt hole. Laminated Tail Wheel Assembly with ForkReference Numbers:
WHU90-0114Makes This Part Fits:
